Pinnkopplingar
Pinnkopplingar

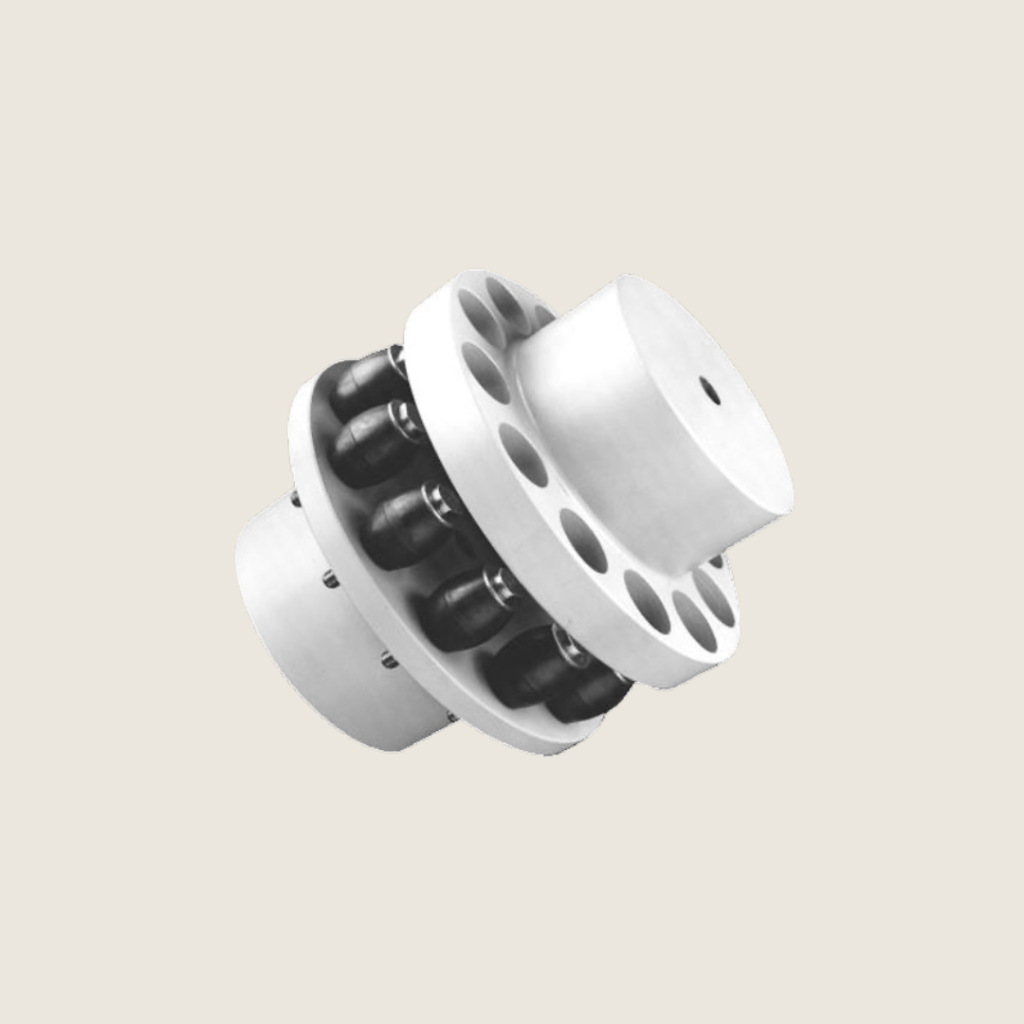

Pin & Bush RB
- Hubs in cast iron
- Bushes available in 4 dfferent materials Nitrile, Polyurethane, Hytrel and Bronze which gives a lot of different alternatives
- Available in 20 different sizes between size 105-3 up to size 900-16
- Coupling rating up to 24347kW@1500 rpm
Pinnkopplingar

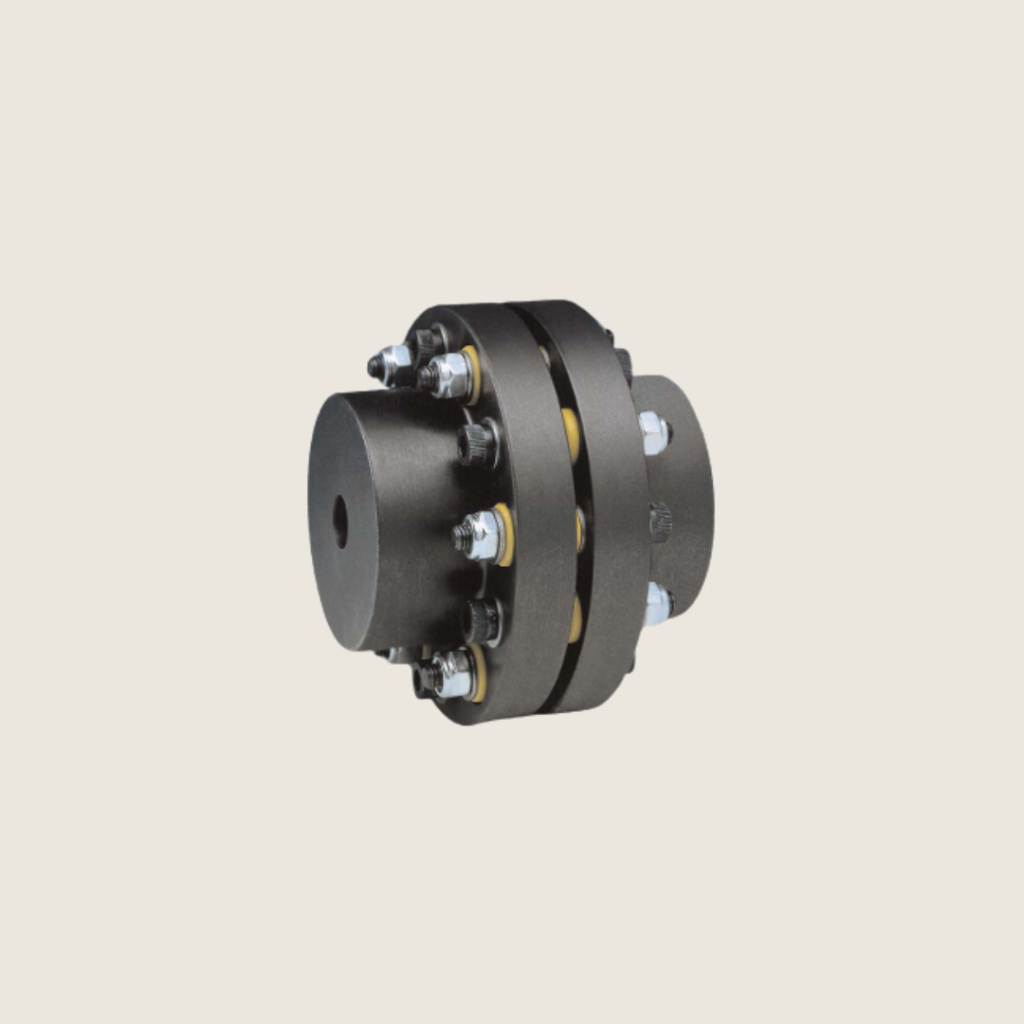

Pinflex / Eflex
- Pin & Bush type coupling
- Hubs in steel and not in cast iron
- Element Buffers in Hytrel as std
- Available in 11 standard sizes
- Bore diameter up to 180 mm
- Rated transmittable torque 37500 Nm
Pinnkopplingar
Layrub
- Max shaft diameter 285 mm
- Nominell torque up to 21.230 Nm
- Max torque 63.700 Nm
